Product Details

Semi-locating bearings are available in single row design as SL1829(dimension series 29),SL1830(dimension 30),SL1822(dimension 22),and in double row design as SL1850(dimension series 50).They can support not only high radial forces but also axial forces in one direction and can therefore guide shafts axially in one direction.they act as non-locating bearings in the opposite direction.

Caution!

The bearings SL1829,SL1830,SL1822 and SL1850 are held together in handing and transport by a transport and mounting retaining device.

This retaining device must not be subjected to axial load.

Axial displacement of inner ring

The inner ring can be axially displaced in one direction only by the dimension"s"stated in the dimension table.

Sealing/lubricant

The cylindrical roller bearings are not sealed and not greased.

They can be lubricated with oil or grease.The semi-locating bearings can be lubricated via the end faces,while the double row designs can additionally be lubricated via a lubrication groove and lubrication holes in the outer ring.

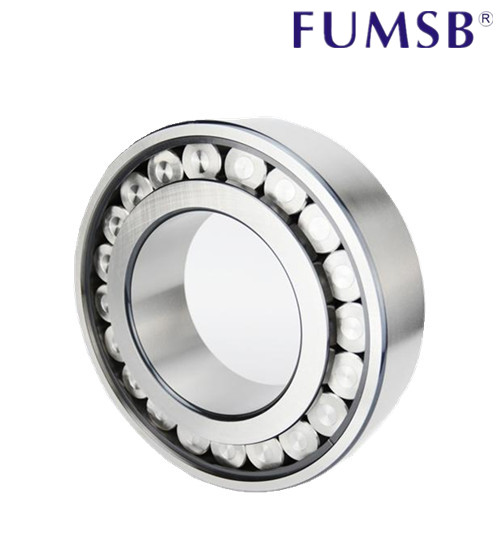

Semi-locating,full complement ,cylindrical roller bearing
single row,semi-locating		double row,semi-locating		Mass	Dimensions				basic load rating
FUMS ref.	SKF ref.	FUMS ref.	SKF ref.	KG	d	D	B	S	dyn.	stat.
SL183004	NCF3004 CV			0.11	20	42	16	1.5	30.5	26.5
SL182204	NCF2204 V			0.16	20	47	18	1	45.5	37.5
		SL185004	NNCF5004 V	0.2	20	42	30	1	53	53
SL183005	NCF3005 CV			0.12	25	47	16	1.5	35	32.5
SL182205	NCF2205 V			0.18	25	52	18	1	51	45
SL192305	NJG2305 VH			0.37	25	62	24	2	73	60
		SL185005	NNCF5005 V	0.23	25	47	30	1	60	65
SL183006	NCF3006 CV			0.2	30	55	19	2	45	43
SL182206	NCF2206 V			0.3	30	62	20	1	70	65
SL192306	NJG2306 VH			0.56	30	72	27	2	100	88
		SL185006	NNCF5006 V	0.35	30	55	34	1.5	78	84
SL183007	NCF3007 CV			0.26	35	62	20	2	55	55
SL182207	NCF2207 V			0.44	35	72	23	1	88	79
SL192307	NJG2307 VH			0.74	35	80	31	2	126	112
		SL185007	NNCF5007 V	0.46	35	62	36	1.5	94	109
SL183008	NCF3008 CV			0.31	40	68	21	2	66	68
SL182208	NCF2208 V			0.55	40	80	23	1	97	93
SL192308	NJG2308 VH			1.01	40	90	33	2	170	156
		SL185008	NNCF5008 V	0.56	40	68	38	1.5	113	136
SL183009	NCF3009 CV			0.4	45	75	23	2	70	76
SL182209	NCF2209 V			0.59	45	85	23	1	101	99
SL192309	NJG2309 VH			1.37	45	100	36	3	181	169
		SL185009	NNCF5009 V	0.71	45	75	40	1.5	120	151
SL183010	NCF3010 CV			0.43	50	80	23	2	88	96
SL182210	NCF2210 V			0.64	50	90	23	1	109	113
SL192310	NJG2310 VH			1.81	50	110	40	3	232	219
		SL185010	NNCF5010 V	0.76	50	80	40	1.5	151	191
SL183011	NCF3011 CV			0.64	55	90	26	2	120	136
SL182211	NCF2211 V			0.87	55	100	25	1	140	150
SL192311	NJG2311 VH			2.28	55	120	43	3	270	255
		SL185011	NNCF5011 V	1.16	55	90	46	1.5	206	275
SL182912	NCF2912 V			0.29	60	85	16	1	63	78
SL183012	NCF3012 CV			0.69	60	95	26	2	123	145
SL182212	NCF2212 V			1.18	60	110	28	1.5	169	180
SL192312	NJG2312 VH			2.88	60	130	46	3	285	280
		SL185012	NNCF5012 V	1.24	60	95	46	1.5	212	290
SL182913	NCF2913 V			0.31	65	90	16	1	67	86
SL183013	NCF3013 CV			0.73	65	100	26	2	130	159
SL182213	NCF2213 V			1.57	65	120	31	1.5	198	214
SL192313	NJG2313 VH			3.52	65	140	48	3.5	350	355
		SL185013	NNCF5013 V	1.32	65	100	46	1.5	223	320
SL182914	NCF2914 V			0.49	70	100	19	1	88	114
SL183014	NCF3014 CV			1.02	70	110	30	3	153	`76
SL182214	NCF2214 V			1.66	70	125	31	1.5	184	117
SL192314	NJG2314 VH			4.33	70	150	51	3.5	385	390
		SL185014	NNCF5014 V	1.85	70	110	54	3	265	355
SL182915	NCF2915 V			0.52	75	105	19	1	91	121
SL183015	NCF3015 CV			1.06	75	115	30	3	162	194
SL182215	NCF2215 V			1.75	75	130	31	1.5	190	241
SL192315	NJG2315 VH			5.3	75	160	55	3.5	460	465
Semi-locating,full complement,cylindrical roller bearing
single row,semi-locating		double row,semi-locating		MASS	Dimensions				basic load ratings
FUMS.REF	SKF.REF	FUMS.REF	SKF.REF	KG	d	D	B	S	dyn.(KN)	stat.(KN)
		SL185015	NNCF5015 V	1.93	75	115	54	3	275	390
SL182916	NCF2916 V			0.55	80	110	19	1	94	129
SL183016	NCF3016 CV			1.43	80	125	34	4	173	225
SL182216	NCF2216 V			2.15	80	140	33	1.5	226	285
SL192316	NJG2316 VH			6.32	80	170	58	3.5	540	560
		SL185016	NNCF5016 V	2.59	80	125	60	3.5	295	450
SL182917	NCF2917 V			0.81	85	120	22	1	118	162
SL183017	NCF3017 CV			1.51	85	130	34	4	178	237
SL182217	NCF2217 V			2.74	85	150	36	1.5	255	325
SL192317	NJG2317 VH			7.32	85	180	60	4	570	620
		SL185017	NNCF5017 V	2.72	85	130	60	3.5	305	475
SL182918	NCF2918 V			0.84	90	125	22	1	122	172
SL183018	NCF3018 CV			1.97	90	140	37	4	208	280
SL182218	NCF2218 V			3.48	90	160	40	2.5	290	370
SL192318	NJG2318 VH			8.83	90	190	64	4	620	660
		SL185018	NNCF5018 V	3.62	90	140	67	4	355	560
SL182919	NCF2919 V			0.86	95	130	22	1	132	179
SL182219	NCF2219 V			4.17	95	170	43	2.5	340	435
SL192319	NJG2319 VH			10.2	95	200	67	4	650	720
SL182920	NCF2920 V			1.14	100	140	24	1.5	152	206
SL183020	NCF3020 CV			2.15	100	150	37	4	219	310
SL182220	NCF2220 V			5.13	100	180	46	2.5	395	520
SL192320	NJG2320 VH			13	100	215	73	4	790	860
		SL185020	NNCF5020 V	3.94	100	150	67	4	375	620
SL182922	NCF2922 V			1.23	110	150	24	1.5	155	220
SL183022	NCF3022 CV			3.5	110	170	45	5.5	285	395
SL182222	NCF2222 V			7.24	110	200	53	4	455	590
SL192322	NJG2322 VH			17	110	240	80	5	950	980
		SL185022	NNCF5022 V	6.32	110	170	80	5	490	790
SL182924	NCF2924 V			1.73	120	165	27	1.5	199	295
SL183024	NCF3024 CV			3.8	120	180	46	5.5	300	435
SL182224	NCF2224 V			9.08	120	215	58	4	540	730
SL192324	NJG2324 VH			22.3	120	260	86	5	1130	1240
		SL185024	NNCF5024 V	6.77	120	180	80	5	520	870
SL182926	NCF2926 V			2.33	130	180	30	2	238	355
SL183026	NCF3026 CV			5.65	130	200	52	5.5	435	620
SL182226	NCF2226 V			11.25	130	230	64	5	630	860
		SL185026	NNCF5026 V	10.2	130	200	95	5	740	1230
SL182928	NCF2928 V			2.42	140	190	30	2	260	385
SL183028	NCF3028 CV			6.04	140	210	53	5.5	455	680
SL182228	NCF2228 V			14.47	140	250	68	5	720	1020
		SL185028	NNCF5028 V	11.1	140	210	95	5	780	1360
SL182930	NCF2930 V			3.77	150	210	36	2.5	340	490
SL183030	NCF3030 CV			7.33	150	225	56	7	480	710
SL182230	NCF2230 V			18.43	150	270	73	6	830	1180
		SL185030	NNCF5030 V	13.3	150	225	100	6	810	1390
SL182932	NCF2932 V			4	160	220	36	2.5	350	520
SL183032	NCF3032 CV			8.8	160	240	60	7	550	820
SL182232	NCF2232 V			23	160	290	80	6	1030	1490
		SL185032	NNCF5032 V	16.2	160	240	109	6	952	1600
