Product Details
Features

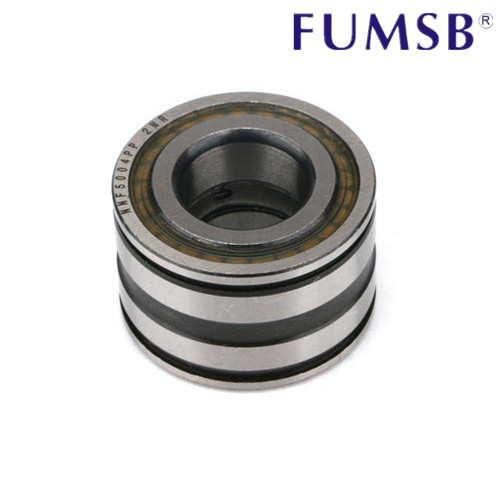

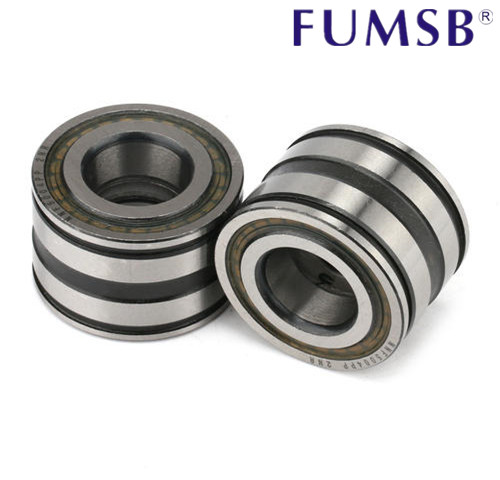

Cylindrical roller bearings with snap ring grooves are full complement,double row units comprising solid outer and inner rings with ribs,rib-guided cylindrical rollers and sealing rings.
The outer rings have grooves for retaining rings.
The inner rings 1mm wider than the outer rings and held together by a rolled-in steel strip.
The bearings are available as a light series SL04..-PP and in the dimension series 50 as sl0450..-PP.
Bearings for cable sheaves
Due to the gooves in the outer rings,the bearing rings can easily be axially located. The bearings are therefore highly suitable for cable sheave bearing arrangements.
Sealing&lubricant
Sealing rings on both sides protect the running system against contamination and moisture.
The cylindrical roller bearings are greased with a lithium complex soap grease and can be relubricated via the outer and inner ring.
Caution! the cylindrical roller bearings are suitable for operationg temperatures from -20℃ to +80℃,limited by the grease and seal material.
