Product Details
Description:

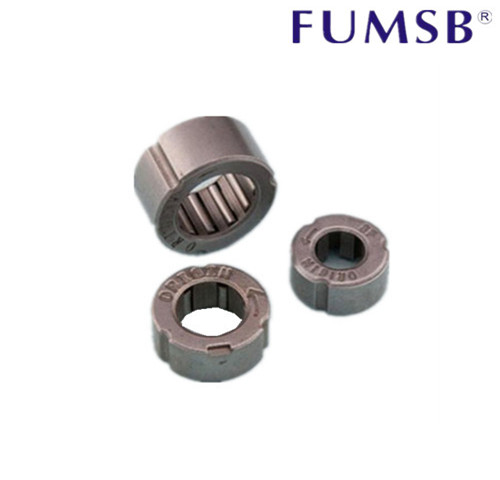

The drawn cup roller clutch is fitted in the housing bore without axial orientation. The roller clutch 's tolerance is determined by the accuracy of the housing bore.The surface rouyhness must be less than Ra0. 8.The inscribed circle' s diameter of roller hutch is same as series HK's. The grinding operation shaft's hardness should be controlled HV670-840.
Working temperature rang of roller clutches with steel springs is between C and +120 C, whereas roller clutches with plastic springs' temperature is between C and +70C.
Shaft Dia. | Model | Weight | Size (mm) | Driving Torque |
mm | g | Inner Dia. | Outer Dia. | Height | ( Nm ) |
4 | OWC406GXRZ | 1.6 | 4 | 8 | 6 | 2.5 |
4 | OWC408GXRZ | 1.8 | 4 | 8 | 8 | 3.1 |
4 | OWC410GXRZ | 1.8 | 4 | 10 | 5.4 | 2.8 |
5 | OWC511GXRZ | 2 | 5 | 11 | 5.4 | 3.5 |
6 | OWC612GXRZ | 2.3 | 6 | 12 | 5.4 | 5.2 |
| OWC612GXLZ | 2.3 | 6 | 12 | 5.4 | 5.2 |
8 | OWC814GXRZ | 2.8 | 8 | 14 | 5.4 | 6.1 |
8 | OWC814GXLZ | 2.8 | 8 | 14 | 5.4 | 6.1 |
| OWC812GXRZ | 2.8 | 8 | 12 | 5 | 5.8 |
10 | OWC1016GXRZ | 3 | 10 | 16 | 5.4 | 9.5 |
10 | OWC1016GXLZ | 3 | 10 | 16 | 5.4 | 9.5 |
6 | OWC612-8.4 | 2.35 | 6 | 12 | 8.4 | 6.8 |
6 | OWC610GXRZ | 2.38 | 6 | 10.2 | 8 | 4.6 |
6 | OWC614-7 | 2.1 | 6 | 14 | 7 | 6.6 |
6 | OWC720 | 2.5 | 6 | 12.7 | 7.5 | 7.3 |
6 | OWC178 | 3 | 6 | 10.2 | 15 | 7.3 |
8 | OWC816-7 | 2.6 | 8 | 16 | 7 | 7.5 |
8 | OWC812 | 3 | 8 | 12.7 | 7.3 | 6.8 |
8 | OWC816-5.5 | 3.5 | 8 | 16 | 5.5 | 8.2 |
8 | OWC816-6.2 | 3.8 | 8 | 16 | 6.2 | 8.8 |
10 | OWC1016-8 | 3.35 | 10 | 16 | 8 | 9.7 |
10 | OWC1019GXLZ | 8.5 | 10 | 19 | 11 | 19.8 |
17 | OWC173512 | 22.5 | 17 | 35 | 12 | 78 |
17 | OWC173516 | 25.5 | 17 | 35 | 16 | 95 |
17 | OWC203316 | 23 | 20 | 33 | 16 | 108 |
