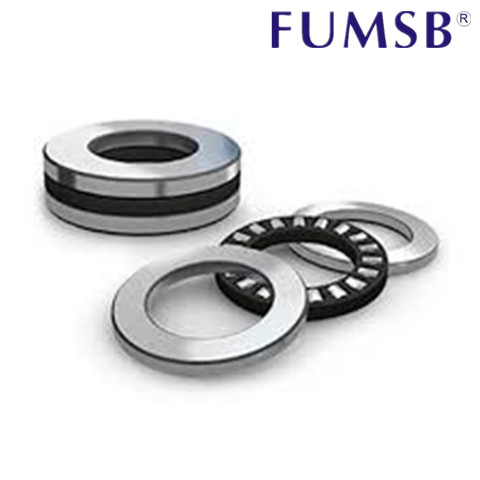

Thrust Needle Roller Bearing, Series AXK, AXW, AX TC, NTB.

Thrust Parallel Roller Bearing, Series 811, 812, 893, 874, 894.

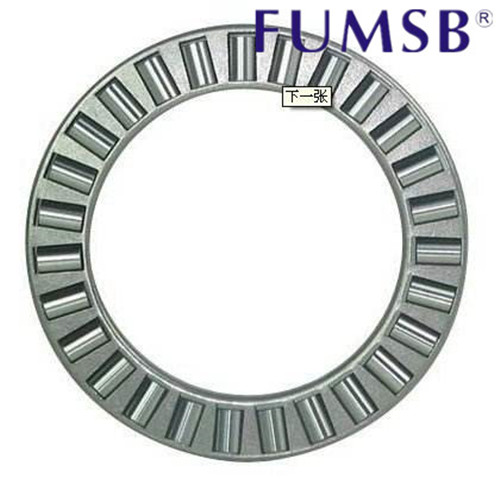

The thrust needle roller bearing or thrust parallel roller bearing is such a manner that the needles(rollers) with cage are set up in the space between roll way and collar and the cage reliably guides and clamps a lot of rolling bodies. There is a little difference among the rolling bodies in the same set. The thrust needle roller bearing or thrust parallel roller bearing is the one only supporting the axial load in one direction. It is used as the bearing allocation having the good rigidity and axial small space.

Thrust Collar, Shaft Ring and Seat Ring.

Thrust Collar Series AS, LS. GS. WS, ZS, TRA TRB, TRC TRD.

Series AS thrust collar is punched with the high quality steel spring plate in thickness of 1mm and quenched and polished. When the surface of the adjacent parts can not be acted as roll way, although it has a good rigidity, Series AS collar shall play its full action.

Series Gs. WS. LS thrust collars are made of bearing steel with the quenching process. The outer surface of GS seat ring and the inner surface of WS shaft ring are ground. Series LS thrust collar is an economic product with machining the outer and inter surfaces.

As for Series ZS thrust collar, when it is required for assembly to set up the bearing as bidirectional location the series ZS collar can be used as axial location or seat hole location.

轴径	型号	推力-圆柱滚子和保持架组件	推力轴承垫圈系列			尺寸
mm	型号	型号	座圈	座圈	轴承垫圈	DC1 d	D1
15	811 02 TN	K81102 TN	GS 811 02	WS 811 02	LS1528	15	16
17	811 03 TN	K811 03 TN	GS 811 03	WS 811 03	LS 1730	17	18
20	811 04 TN	K811 04 TN	GS 811 04	WS 811 04	LS 2035	20	21
25	811 05 TN	K811 05 TN	GS 81105	WS 81105	LS 2542	25	26
30	811 06 TN	K811 06 TN	GS 811 06	WS 811 06	LS 3047	30	32
	812 06 TN	K 812 06 TN	GS 812 06	WS 812 06	--	30	32
	893 06 TN	K893 06 TN	GS 893 06	WS 893 06	--	30	32
35	811 07 TN	K 811 07 TN	GS811 07	WS811 07	LS 3552	35	37
	812 07 TN	K 812 07 TN	GS 812 07	WS 812 07	--	35	37
	893 07 TN	K 893 07 TN	GS 893 07	WS 893 07	--	35	37
		K 894 07 TN	--	--	--	35	--
40	811 08 TN	K811 08 TN	GS 811 08	WS 811 08	LS 4060	40	42
	812 08 TN	K 812 08 TN	GS 812 08	WS 812 08	--	40	42
	893 08 TN	K893 08 TN	GS 893 08	WS 893 08	--	40	42
	874 08	K 874 08	GS 874 08	WS 874 08	--	40	42
		K 894 08 TN	--	--	--	40	--
45	811 09 TN	K81109TN	GS 811 09	WS 811 09	LS 4565	45	47
	812 09 TN	K 812 09 TN	GS 812 09	WS 812 09	--	45	47
	893 09 TN	K 893 09 TN	GS 893 09	WS 893 09	--	45	47
	874 09	K 874 09	GS 874 09	WS 874 09	--	45	47
		K 894 09 TN	--	--	--	45	--
50	81110TN	K 811 10 TN	GS 811 10	WS 811 10	LS 5070	50	52
	81210TN	K 812 10 TN	GS 812 10	WS 812 10	--	50	52
	89310TN	K 893 10 TN	GS 893 10	WS 893 10	--	50	52
	874 10 TN	K 874 10 TN	GS 874 10	WS 874 10	--	50	52
		K894 10 TN	--	--	--	50	--
55	811 11 TN	K 811 11 TN	GS 811 11	WS 811 11	LS 5578	55	57
	812 11 TN	K 812 11 TN	GS 812 11	WS 812 11	--	55	57
	893 11 TN	K 893 11 TN	GS 893 11	WS 893 11	--	55	57
	874 11	K 874 11 TN	GS 874 11	WS 874 11	--	55	57
		K 894 11 TN	--	--	--	55	--
60	811 12 TN	K811 12 TN	GS 811 12	WS 811 12	LS 6085	60	62
	812 12 TN	K 812 12 TN	GS 812 12	WS 812 12	--	60	62
	893 12 TN	K 893 12 TN	GS 893 12	WS 893 12	--	60	62
	874 12	K 874 12	GS 874 12	WS 874 12	--	60	62
	894 12 TN	K 894 12 TN	GS 894 12	WS 894 12	--	60	62
65	81113TN	K811 13 TN	GS811 13	WS811 13	LS 6590	65	67
	812 13TN	K 812 13 TN	GS 812 13	WS 812 13		65	67
	89313TN	K893 13 TN	GS893 13	WS893 13		65	67
	874 13	K 874 13	GS874 13	WS874 13		65	68
	894 13 TN	K 894 13 TN	GS 894 13	WS 894 13		65	68
70	811 14 TN	K811 14 TN	GS11 14	WS11 14	LS 7095	70	72
	812 14 TN	K812 14 TN	GS812 14	WS812 14		70	72
	893 14 TN	K 893 14 TN	GS893 14	WS893 14		70	72
	874 14	K 874 14	GS 874 14	WS 874 14		70	73/td>
	894 14	K 894 14	GS 894 14	WS 894 14		70	73
75	811 15 TN	K 811 15 TN	GS 811 15	WS 811 15	LS 75100	75	77
	812 15 TN	K 812 15 TN	GS 812 15	WS 812 15		75	77
	893 15 TN	K 893 15 TN	GS 893 15	WS 893 15		75	77
	874 15	K 874 15	GS 874 15	WS 874 15		75	78
	894 15	K 894 15	GS 894 15	WS 894 15		75	78
80	811 16 TN	K 811 16 TN	GS 811 16	WS 811 16	LS 80105	80	82
	812 16 TN	K 812 16 TN	GS 812 16	WS 812 16		80	82
	893 16 TN	K893 16 TN	GS893 16	WS893 16		80	82
	874 16	K874 16	GS874 16	WS874 16		80	83
	894 16	K 894 16	GS 894 16	WS 894 16		80	83
85	811 17 TN	K 811 17 TN	GS 811 17	WS 811 17	LS 85110	85	87
	812 17 TN	K 812 17 TN	GS 812 17	WS 812 17		85	88
	893 17	K893 17 TN	GS893 17	WS893 17		85	88
	874 17	K874 17	GS 874 17	WS 874 17		85	88
	894 17	K 894 17	GS 894 17	WS 894 17		85	88
90	811 18 TN	K 811 18 TN	GS 811 18	WS 811 18	LS 90120	90	92
	812 18TN	K 812 18 TN	GS 812 18	WS 812 18		90	93
	893 18	K 893 18	GS 893 18	WS 893 18		90	93
	874 18	K 874 18	GS 874 18	WS 874 18		90	93
	894 18	K 894 18	GS 894 18	WS 894 18		90	93
100	811 20 TN	K 811 20 TN	GS 811 20	WS 811 20	LS 100135	100	102
	812 20	K 812 20	GS 812 20	WS 812 20		100	103
	893 20	K 893 20	GS 893 20	WS 893 20		100	103
	874 20	K 874 20	GS 874 20	WS 874 20		100	103
	894 20	K 894 20	GS 894 20	WS 894 20		100	103
110	811 22	K 811 22	GS 811 22	WS 811 22	LS 1101145	110	112
	812 22	K 812 22	GS812 22	WS812 22		110	113
	893 22	K 893 22	GS893 22	WS893 22		110	113
	874 22*	K 874 22*	GS87422*	WS87422*		110	113
	894 22	K 894 22	GS894 22	WS894 22		110	113
120	811 24	K 811 24	GS811 24	WS811 24	LS 120155	120	122





	812 24	K812 24	GS812 24	WS812 24		120	123
	893 24	K 893 24	GS893 24	WS893 24		120	123
	874 24*	K874 24*	GS874 24*	WS874 24*		120	123
	894 24	K 894 24	GS894 24	WS894 24		120	123
130	811 26	K 811 26	GS811 26	WS811 26	LS 130170	130	132
	812 26	K 812 26	GS812 26	WS812 26		130	133
	893 26	K 893 26	GS893 26	WS893 26		130	134
	874 26*	K 874 26*	GS874 26*	WS874 26*		130	134
	894 26	K 894 26	GS894 26	WS894 26		130	134
140	811 28	K 811 28	GS811 28	WS811 28	LS 140180	140	142
	812 28	K 812 28	GS812 28	WS812 28		140	143
	893 28	K893 28	GS893 28	WS893 28		140	144
	874 28*	K 874 28*	GS 874 28*	WS 874 28*		140	144
	894 28	K 894 28	GS 894 28	WS 894 28		140	144
150	811 30	K 811 30	GS 811 30	WS 811 30	LS 150190	150	152
	812 30	K 812 30	GS812 30	WS812 30		150	153
	893 30	K 893 30	GS893 30	WS893 30		150	154
	874 30*	K 874 30*	GS874 30*	WS874 30*		150	154
	894 30	K 894 30	GS894 30	WS894 30		150	154
160	811 32	K 811 32	GS811 32	WS811 32	LS 160200	160	162
	812 32	K812 32	GS812 32	WS812 32		160	163
	893 32*	K 893 32*	GS893 32*	WS893 32*		160	164
	874 32*	K 874 32*	GS 874 32*	WS 874 32*		160	164
	894 32	K 894 32	GS894 32	WS894 32		160	164
170	811 34	K 811 34	GS811 34	WS811 34		170	172
	812 34	K 812 34	GS812 34	WS812 34		170	173
	893 34*	K 893 34*	GS893 34*	WS893 34*		170	174
	874 34*	K 874 34*	GS874 34*	WS874 34*		170	174
	894 34	K 894 34	GS894 34	WS894 34		170
下表接上表
外型尺寸						滚道尺寸		基本额定负荷N		极限转速

										n1grease≈

Dc	d1	T	Dw	B	a rs	Eb	Ea	动	静	min-1

					min.			C	Co
28	28	9	3.5	2.75	0.3	16	27	14100	28500	11000
30	30	9	3.5	2.75	0.3	18	29	15900	33500	10000
35	35	10	4.5	2.75	0.3	21	34	24900	53000	8500
42	42	11	5	3	0.6	26	41	33500	76000	7000
47	47	11	5	3	0.6	31	46	35500	86000	6000
52	52	16	7.5	4.25	0.6	31	50	64000	141000	6000
60	60	18	5.5	6.25	1	33	59	69000	197000	5000
52	52	12	5	3.5	0.6	36	51	39000	101000	5500
62	62	18	7.5	5.25	1	39	58	80000	199000	4900
68	68	20	6	7	1	38	67	80000	237000	4600
80	--	--	9	--	--	38	78	155000	430000	4200
60	60	13	6	3.5	0.6	42	58	56000	148000	4800
68	68	19	9	5	1	43	66	107000	265000	4400
78	78	22	7	7.5	1	44	77	122000	385000	4000
90	90	23	6.5	8.25	1.1	45	89	135000	480000	3600
90	--	--	10	--	--	43	87	200000	580000	3700
65	65	14	6	4	0.6	47	63	59000	163000	4400
73	73	20	9	5.5	1	48	70	105000	265000	4000
85	85	24	7.5	8.25	1	49	83	139000	445000	3600
100	100	25	7	9	1.1	52	98	154000	560000	3200
100	--	--	11	--	--	49	97	239000	700000	3300
70	70	14	6	4	0.6	52	68	61000	177000	4000
78	78	22	9	6.5	1	53	75	117000	315000	3700
95	95	27	8	9.5	1.1	56	92	167000	560000	3200
110	110	27	8	9.5	1.5	54	107	200000	74000	2900
110	--	--	12	--	--	54	107	295000	900000	3000
78	78	16	6	5	0.6	57	77	90000	300000	3600
90	90	25	11	7	1	59	85	154000	405000	3300
105	105	30	9	10.5	1.1	61	103	184000	600000	2900
120	120	29	8	10.5	1.5	65	118	222000	870000	2600
120	--	--	13	--	--	59	116	340000	1050000	2700
85	85	17	7.5	4.75	1	62	82	103000	315000	3300
95	95	26	11	7.5	1	64	91	172000	480000	3100
110	110	30	9	10.5	1.1	66	108	196000	670000	2700
130	130	32	9	11.5	1.5	68	128	260000	1000000	2500
130	130	42	14	14	1.5	65	126	390000	1220000	2500
90	90	18	7.5	5.25	1	67	87	107000	340000	3100
100	100	27	11	8	1	69	96	177000	500000	2900
115	115	30	9	10.5	1.1	71	113	194000	670000	2600
140	140	34	10	12	2	72	137	300000	1140000	2300
140	140	45	15	15	2	70	135	445000	1410000	2300
95	95	18	7.5	5.25	1	72	92	111000	365000	2900
105	105	27	11	8	1	74	102	187000	550000	2700
125	125	34	10	12	1.1	76	123	239000	830000	2400
150	150	36	11	12.5	2	76	147	360000	1380000	2200
150	150	48	16	16	2	78	147	450000	1390000	2100
100	100	19	7.5	5.75	1	78	97	105000	340000	2700
110	110	27	11	8	1	79	106	172000	500000	2600
135	135	36	11	12.5	1.5	81	132	285000	1010000	2200
160	160	28	12	13	2	80	157	430000	1660000	2000
160	160	51	17	17	2	84	156	500000	1580000	2000
105	105	19	7.5	5.75	1	83	102	106000	350000	2600
115	115	28	11	8.5	1	84	112	201000	630000	2400
140	140	36	11	12.5	1.5	86	137	305000	1110000	2100
170	170	41	12	14.5	2.1	89	167	450000	1810000	1900
170	170	54	18	18	2.1	89	166	560000	1770000	1900
110	110	19	7.5	5.75	1	87	108	112000	385000	2500
125	125	31	12	9.5	1	90	119	217000	660000	2300
150	150	39	12	13.5	1.5	93	147	325000	1140000	2000
180	180	42	13	14.5	2.1	92	176	485000	1920000	1800
180	180	58	19	19.5	2.1	94	176	620000	1980000	1800
120	120	22	9	6.5	1	93	117	141000	465000	2300
135	135	35	14	10.5	1.1	95	129	290000	890000	2100
155	155	39	12	13.5	1.5	98	152	330000	1200000	1900
190	190	45	13	16	2.1	102	186	510000	2090000	1700
190	190	60	20	20	2.1	100	186	680000	2200000	1700
135	135	25	11	7	1	104	131	199000	650000	2000
150	150	38	15	11.5	1.1	107	142	285000	840000	1900
170	170	42	13	14.5	1.5	109	167	380000	1400000	1700
210	210	50	15	17.5	3	110	206	680000	2800000	1500
210	210	67	22	22.5	3	112	206	850000	2850000	1500
145	145	25	11	7	1	114	141	195000	650000	1900
160	160	38	15	11.5	1.1	117	152	300000	940000	1800
190	190	48	15	16.5	2	120	186	500000	1870000	1600
230	230	54	17	18.5	3	117	225	810000	3350000	1400
230	230	73	24	24.5	3	123	225	1000000	3400000	1400
155	155	25	11	7	1	124	151	203000	700000	1700
170	170	39	15	12	1.1	127	162	310000	980000	1700
210	210	54	17	18.5	2.1	130	206	640000	2420000	1400
250	250	58	18	20	4	131	244	960000	4100000	1300
250	250	78	26	26	4	135	245	1160000	4000000	1300
170	170	30	12	9	1	135	165	233000	810000	1600
190	190	45	19	13	1.5	137	181	425000	1290000	1500
225	225	58	18	20	2.1	141	220	710000	2700000	1300
270	270	63	19	22	4	144	265	1050000	4550000	1200
270	270	85	28	28.5	4	147	265	1330000	4600000	1200
180	180	31	12	9.5	1	145	175	242000	870000	1500
200	200	46	19	13.5	1.5	147	191	445000	1450000	1400
240	240	60	19	20.5	2.1	152	235	820000	3200000	1200
280	280	63	19	22	4	155	276	1110000	4950000	1100
280	280	85	28	28.5	4	157	275	1380000	4950000	1100
190	190	31	12	9.5	1	155	185	250000	930000	1400
215	215	50	21	14.5	1.5	158	211	590000	1940000	1300
250	250	60	19	20.5	2.1	162	245	840000	3350000	1200
300	300	67	21	23	4	162	295	1260000	5500000	1000
300	300	90	30	30	4	168	295	1570000	5700000	1000
200	200	31	12	9.5	1	165	195	260000	990000	1300
225	225	51	21	15	1.5	168	220	600000	2030000	1200
270	270	67	21	23	3	174	265	970000	3900000	1100
320	320	73	22	25.5	5	177	316	1450000	6600000	1000
320	320	95	32	31.5	5	179	315	1780000	6500000	950
215	215	34	14	10	1.1	176	209	325000	1220000	1200
240	240	55	22	16.5	1.5	180	235	680000	2340000	1100
280	280	67	21	23	3	185	276	1000000	4050000	1000
340	340	78	24	27	5	184	335	1620000	7300000	900
340	340	103	--	--	5	191	335	1990000	7400000	900
