推力垫图、轴圈、座圈

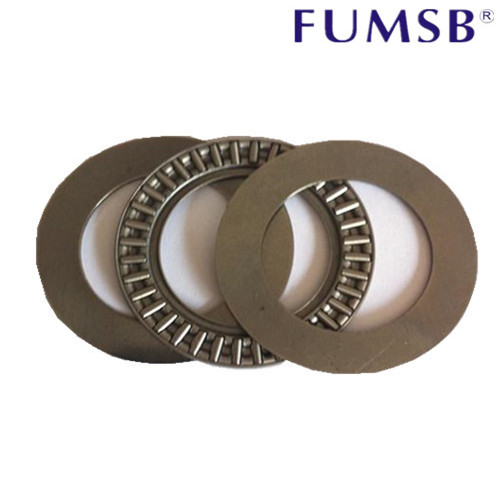

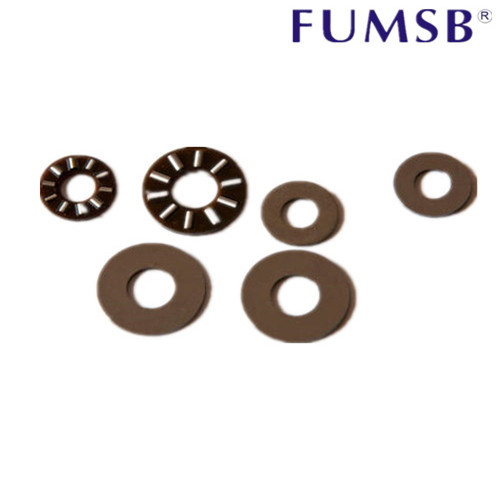

推力垫圈 AS LS GS WS ZS TRA TRB TRC TRD系列

好但不宜作滚道时,A系列之簧钢冲压而成其厚度为1m,并经淖硬和抛光当相邻部件表面钢性虽。

推力垫圈GS.Ws.LS系列是用轴承钢制成并经淬硬处理。座圈GS外表面和轴圈Ws内表面是经过磨削制成。LS则是特别经济的车制外表面和内表面。

推力垫圈ZS系列,当组件使用需要作双向定位的轴承配置时,本公司可提供2S中圈系列,中圈2系列可轴向定位或座孔定位。

Shaft Diameter	轴承型号Bearing Designation	外形尺寸Boudary Dimensions			基本额定负荷Basic Load Rating		极限转速Limiting Speed	轴承垫圈Besring	座圈	轴圈
Shaft Diameter		d	D	Dw	动 Cr Dynamic	静 Cor Static	油润滑Oil	Washer	Shaft Loc.Washer	Washer Shaft
mm		mm			N		rpm
4	AXK0414TN	4	14	2	4380	7500	18000	AS 0414	-	-
5	AXK0515TN	5	15	2	4680	9100	17000	AS 0515	-	-
6	AXK0619TN	6	19	2	6740	15400	16000	AS 0619	-	-
8	AXK0821TN	8	21	2	7750	19000	15000	AS 0821	-	-
10	AXK1024	10	24	2	9150	24500	14000	AS 1024	-	-
12	AXK1226	12	26	2	9860	28600	13000	AS 1226	-	-
15	AXK1528	15	28	2	11200	35500	11000	AS 1528	GS 811 02	WS 811 02
17	AXK1730	17	30	2	11800	38600	10000	AS 1730	GS 811 03	WS 811 03
20	AXK2035	20	35	2	12900	45600	8500	AS 2035	GS 811 04	WS 811 04
25	AXK2542	25	42	2	13800	67800	7000	AS 3542	GS 811 05	WS 811 05
30	AXK3047	30	47	2	15600	69500	6000	AS 3047	GS 811 06	WS 811 06
35	AXK3552	35	52	2	16900	80100	5500	AS 3552	GS 811 07	WS 811 07
40	AXK4060	40	60	3	27500	113500	4700	AS 4060	GS 811 08	WS 811 08
45	AXK4565	45	65	3	29050	127600	4300	AS 4565	GS 811 09	WS 811 09
50	AXK5070	50	70	3	31500	138000	3900	AS 5070	GS 811 10	WS 811 10
55	AXK5578	55	78	3	37400	185000	3500	AS 5578	GS 811 11	WS 811 11
60	AXK6085	60	85	3	43900	232500	3200	AS 6085	GS 811 12	WS 811 12
65	AXK6590	65	90	3	45800	254600	3000	AS 6590	GS 811 13	WS 811 13
70	AXK7095	70	95	4	53600	254400	2900	AS 7095	GS 811 14	WS 811 14
75	AXK75100	75	100	4	54500	264600	2700	AS 75100	GS 811 15	WS 811 15
80	AXK80105	80	105	4	55600	278500	2600	AS 80105	GS 811 16	WS 811 16
85	AXK85110	85	110	4	57500	28800	2400	AS 85110	GS 811 17	WS 811 17
90	AXK90120	90	120	4	72500	401000	2300	AS 90120	GS 811 18	WS 811 18
100	AXK100135	100	135	4	90500	559500	2000	AS 100135	GS 811 20	WS 811 20
110	AXK110145	110	145	4	96500	617500	1900	AS 110145	GS 811 22	WS 811 22
120	AXK120155	120	155	4	101500	679600	1700	AS 120155	GS 811 24	WS 811 24
130	AXK130170	130	170	5	132400	838900	1600	AS 130170	GS 811 28	WS 811 26
140	AXK140180	140	180	5	137200	899600	1500	AS 140180	GS 811 30	WS 811 28
150	AXK150190	150	190	5	142800	959000	1400	AS 150190	GS 811 32	WS 811 30
160	AXK160200	160	200	5	147600	1015000	1300	AS 160200	GS 811 32	WS 811 32

轴径	轴承型号	重量	外形尺寸					基本额定负荷		极限转速
轴径		重量	Dc1	D1	D	B	B1	动	静	油润滑
mm		g	mm					N		rpm
10	AXW10	8.3	10	14	27	3.2	3	9100	24000	14000
12	AXW12	9.1	12	16	29	3.2	3	8900	27800	13000
15	AXW15	10.1	15	21	31	3.2	3.5	10500	35000	11000
17	AXW17	11	17	23	33	3.2	3.5	10900	38800	10000
20	AXW20	14	20	26	38	3.2	3.5	12700	45600	8500
25	AXW25	19.5	25	32	45	3.2	4	13900	57500	7000
30	AXW30	22	30	37	50	3.2	4	15900	69500	6000
35	AXW35	26.6	35	42	55	3.2	4	17000	80100	5500
40	AXW40	39.2	40	47	63	4.2	4	27800	109000	4700
45	AXW45	43.4	45	52	68	4.2	4	29500	119900	4300
50	AXW50	49.2	50	58	73	4.2	4.5	31800	140900	3900
轴径Shaft Diameter	轴承型号Bearing Designation	质量Mass(g)	外形尺寸			垫圈厚度						基本额定负荷Basic Load Rating		极限转速Limiting Speed
			Boundary Dimentions			Washers Thickness						动Cr	静Cor
												Dynamic	Static
			Dc1	Dc	Dw	TRA	TRB	TRC	TRD	TRE	TRF	Cr(N)	Cor(N)	脂润滑Greasc
6.35	NTA411		6.35	17.45	1.984	0.8	1.6	2.4				4114	9163	28000
7.92	NTA512		7.92	19.5	1.984	0.8	1.6	2.4				4670	11164	25000
9.52	NTA613		9.52	20.62	1.984	0.8	1.6	2.4				4848	12188	23000
12.7	NTA815		12.7	23.8	1.984	0.8	1.6	2.4				5738	16280	19000
14.27	NTA916		14.27	25.4	1.984	0.8	1.6	2.4				6183	18281	18000
15.88	NTA1018		15.88	28.58	1.984	0.8	1.6	2.4	3.2	4		7072	22551	16000
19.05	NTA1220		19.05	31.75	1.984	0.8	1.6	2.4	3.2	4		7873	27088	14000
22.22	NTA1423		22.22	36.5	1.984	0.8	1.6	2.4	3.2	4		10453	40966	12000
22.22	NTA1427		22.22	42.85	1.984	0.8	1.6	2.4	3.2	4		15257	68944	10000
25.4	NTA1625		25.4	39.67	1.984	0.8	1.6	2.4	3.2	4		10764	43902	11000
28.58	NTA1828		25.58	44.45	1.984	0.8	1.6	2.4	3.2	4		13522	60938	9800
31.75	NTA2031		31.75	49.21	1.984	0.8	1.6	2.4	3.2	4	4.8	16431	80954	8800
34.92	NTA2233		34.92	52.37	1.984	0.8	1.6	2.4	3.2	4	4.8	17392	89405	8200
38.1	NTA2435		38.1	55.5	1.984	0.8	1.6	2.4	3.2	4	4.8	18904	102304	7700
44.45	NTA2840		44.45	63.5	1.984	0.8	1.6	2.4	3.2	4	4.8	20639	119651.2	6900
50.8	NTA3244		50.8	69.85	1.984	0.8	1.6	2.4	3.2	4	4.8	19571	115203.2	6200
53.98	NTA3446		53.98	73.02	1.984	0.8	1.6	2.4	3.2	4		19883	119651.2	5900
57.15	NTA3648		57.15	76.2	1.984	0.8	1.6	2.4	3.2	4	4.8	20194	123654.4	5700
57.15	NTA3650		57.15	79.38	3.125							32915	168134.4	5300
63.5	NTA4052		63.5	82.55	1.984	0.8	1.6	2.4	3.2	4		20772	132105.6	5200
69.85	NTA4458		69.85	92.08	3.175	0.8	1.6	2.4	3.2	4	4.8	41722	242416	4600
76.2	NTA4860		76.2	95.25	1.984	0.8	1.6	2.4	3.2			21973	149452.8	4500
82.55	NTA5266		82.55	104.78	3.175	0.8	1.6	2.4	3.2			44925	279779.2	4000
95.25	NTA6074		95.25	117.48	3.175	0.8	1.6	2.4	3.2			48928	326483.2	3500
104.78	NTA6681		104.78	128.59	3.175	0.8	1.6	2.4	3.2		4.8	55600	395427.2	3200
